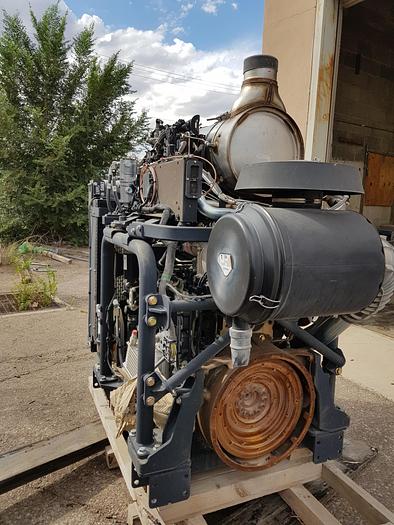

2012 Perkins 1206E 200 kW @1800RPM Engine Tier 4 Interim 6 Cylinder
Specifications
| Manufacturer | Perkins |
| Model | 1206E |
| Year | 2012 |
| Stock Number | EM00345 |
| Number of cylinders | 6 vertical |
| Aspiration | Series turbocharged |
| Displacement | 7.01 litres |
| Combustion system | Direct |
| Rotation | Anti-clockwise, viewed on |
| Total lubricating capacity | 13-16 litres (3.4-4.2 US |
| Total coolant capacity | 15.2 litres (4 US |
| Width | 916 mm |
| Height | 1617 mm |
| Dry weight | 1200 kg |
| Length (inc air filter) | 1902 mm (74.9 |
Description

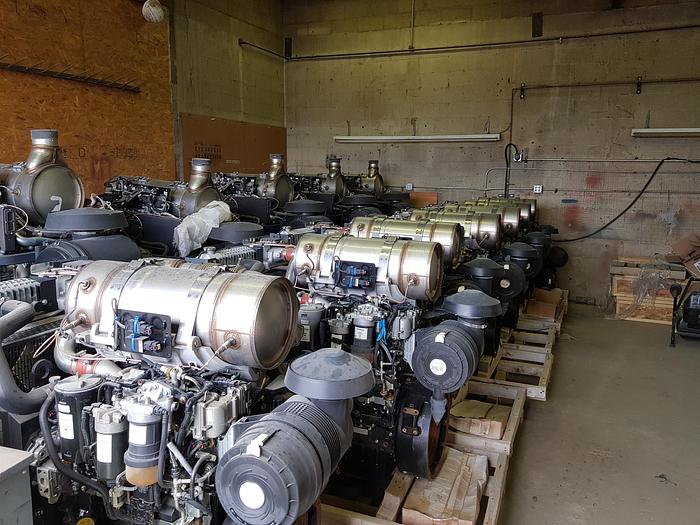

3 New Surplus Engines available
Engine data
Number of cylinders ................................................. 6 vertical in-line
Bore and stroke .........................105 mm x 135 mm (4.13 in x 5.3 in)
Displacement ................................................... 7.01 litres (427.7 in3)
Aspiration ....................................... Series turbocharged aftercooled
Cycle ................................................................................... 4 stroke
Combustion system ................................................... Direct injection
Compression ratio ..................................................................16.5:1
Rotation .......................................Anti-clockwise, viewed on flywheel
Total lubricating capacity ........................ 13-16 litres (3.4-4.2 US gal)
Cooling system ........................................................................Liquid
Total coolant capacity ........................................15.2 litres (4 US gal)
Dimensions
Length (inc air filter) .........................................1902 mm (74.9 in)
Width ................................................................916 mm (36.0 in)
Height .............................................................1617 mm (63.7 in)
Dry weight ........................................................1200 kg (2645.5 lbs)
