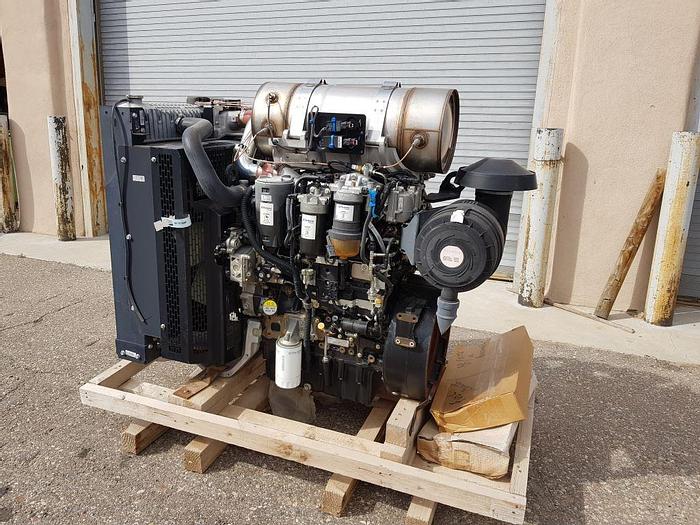

2012 New Tier 4 Interim Perkins Diesel Engines 1204E 1800 RPM 4 Cylinder

8 Engines available 1204E. at 100 kW 1800 RPM these are Tier 4 Interim units. Surplus new, Zero hours.

Engine data

Number of cylinders ................................................. 4 vertical in-line

Bore and stroke ............................105 mm x 127 mm (4.13 in x 5 in)

Displacement ..................................................4.4 litres (268.5 cu in)

Aspiration ....................................... Series turbocharged aftercooled

Cycle ................................................................................... 4 stroke

Combustion system ................................................... Direct injection

Compression ratio ..................................................................16.5:1

Rotation .......................................Anti-clockwise, viewed on flywheel

Total lubricating capacity ................ 5.2-13.5 litres (1.37-3.57 US gal)

Cooling system ........................................................................Liquid

Total coolant capacity ...................................10.8 litres (2.85 US gal)

Dimensions

Length ............................................................1433 mm (56.4 in)

Width ................................................................795 mm (31.3 in)

Height (incl aftertreatment) .............................. 1150 mm 45.3 in)

Dry weight .............................................................700 kg (1543 lbs)
