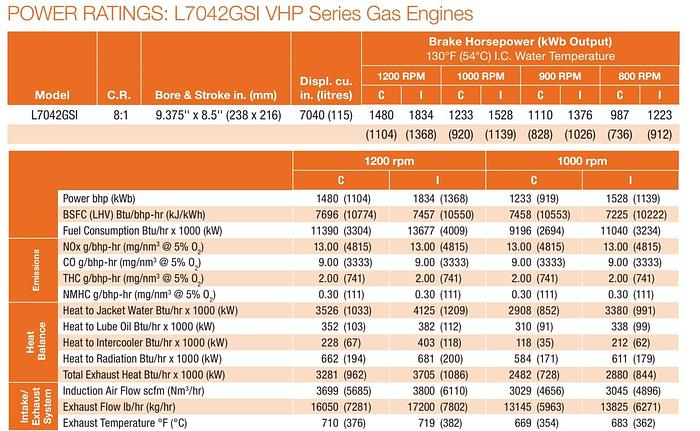

2024 Waukesha L7042 GSI

• WPI Certified-Reman Waukesha 7042 GSI natural generator drive gas engine

• Woodward EG3 actuator and 2301 controller

• Air or electric start (air start optional, same cost)

• Battery rack and cables, battery box (no batteries)

• Battery charger mounted in the freestanding control panel (engine charging alternator)

• Block heaters with isolation valves (120/240 volt)

• Steel skid base

• Wellington/AC, 12 lead PMG two-bearing close-coupled alternator, 125C rise, 277/480 volt, rated for

continuous duty and configured for synchronizing and parallel operations in island mode. Complete with

strip heaters & digital AVR. (1200 RPM @ 60 HZ/ 1000 RPM @ 50 HZ)

• Engine to alternator rubber-block drive coupling

• Free standing (ship-loose off skid) (NEMA 3R weather protected) generator set control panel enclosure

with clear viewing panel, powder coat painted. Digital generator set controller & breaker

• DeepSea 8610 Mark-II digital paralleling and synchronizing controller (ComAp optional)

• Safety shutdowns for high water temperature, low oil pressure, over crank, overspeed

• Motor starting controls for electric drive radiator

• 1600 AMP rack mounted motorized circuit breaker with PT’s & CT’s

• Point of “customer common contact” busbar connection inside (rear)of the control panel through (access

door) hex-key door lock

• Breaker trip safety, should the breaker access door be opened to the breaker while under power

(energized) the breaker will trip “open”

• Service lighting (DC) inside control panel, with twist timer

• New engine-generator set wiring harness for command and control communications between engine and

digital generator-set controller.

• Note: cable connection between the alternator and breaker are not provided (optional cost)

• Remote communications with DeepSea controller (available as standard from DeepSea)

• Critical grade exhaust silencer complete with exhaust flex and transitions, bolt and gasket kit

• Electric drive (horizontal discharge) separate-circuit (HT/LT) cooling radiator, rated for 50C ambient.

Radiator comes complete with motor starting controls. Radiator is “off-skid” to be mounted in front of the

generator set package. Includes an installation kit for connection to the engine (during) installation.

(radiator is shipped loose) horizontal discharge, installation instructions

• Factory package is load bank tested and a copy of the certified load test report provided with each unit

• One-year 3000 hour complete-package warranty, from the initial date of startup-commissioning

• commissioning services quoted as option, commissioning protocol manual provided

• Complete document package with installation instructions & warranty registration card

• Complete electrical & mechanical drawing package

• Package shipped without fluids (clearly labeled)

• High quality finish paint (Waukesha Orange)

• EPG & WPI package labeling

• Shrink wrap and mounted on wooden blocks.

• FOB shipping point, WPI Canada - Spruce Grove Alberta Canada (cost includes loading on flatbed trucks)

• Export packing and container loading is optional (extra charge) and will be quoted by local freight packing

and logistic providers
