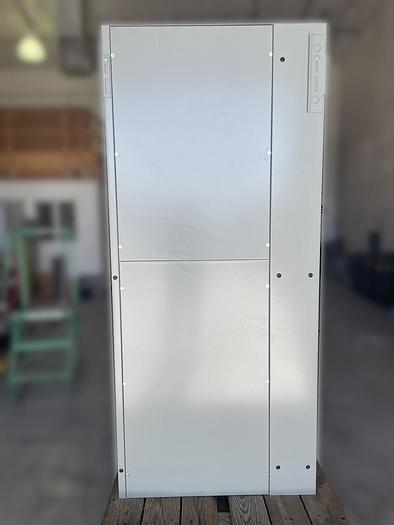

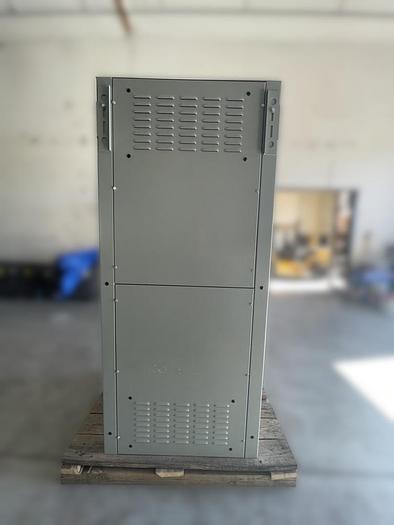

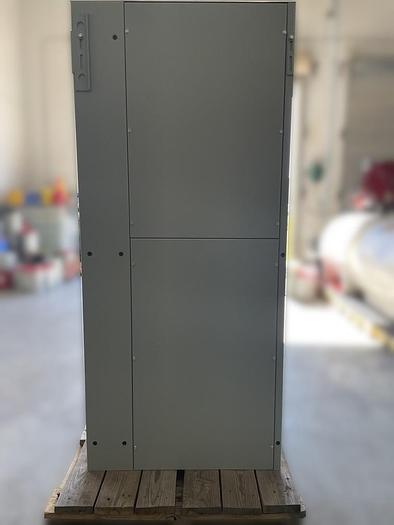

Eaton 2000 Amp Manual Transfer Switch

Non-Automatic Transfer Switch

Product Family: Floor Standing Contactor

                               Switch Type: Non Automatic Contactor 2000A thru 3000A

                               480/277v, 60hz, 3 Phase, 4 Wire, 3 poles

                               Transition Mode: Open

                               Controller Type: Electromechanical

                               Continuous Current: 2000 Amps

                               Withstand: 100kA spc bkr/100kA (0.05 sec)

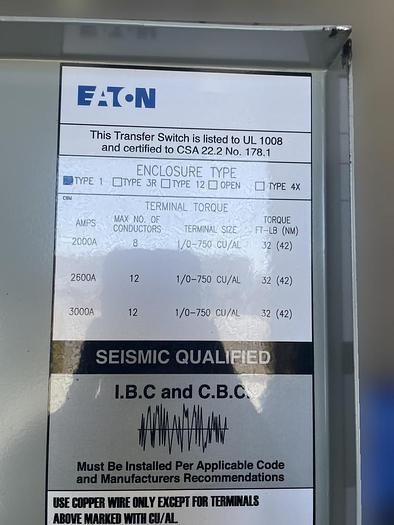

                               Normal Source Terminals: (8) 1/0-750 CU/AL

                               Emergency Source Terminals: (8) 1/0-750 CU/AL

                               Load Side Terminals: (8) 1/0-750 CU/AL

                               Neutral Terminals: (24) 1/0-750 CU/AL

                               Standard Features: 12c, 12d, 12g, 12h, 14l, 14m, 15v, 15w, 42, 49c, 59a,

                               Optional Features: No Optional Features Selected

                               Shipping State: AZ

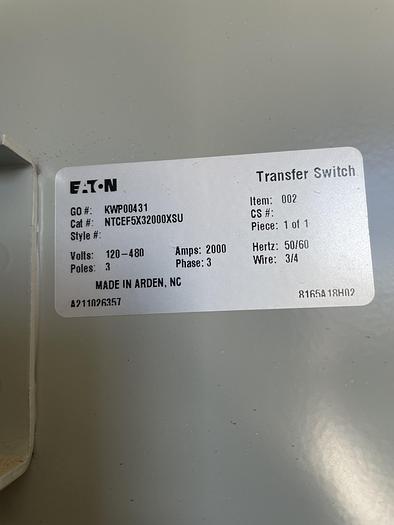

Catalog No         NTCEF5X32000XSU

               Qty        List of Materials

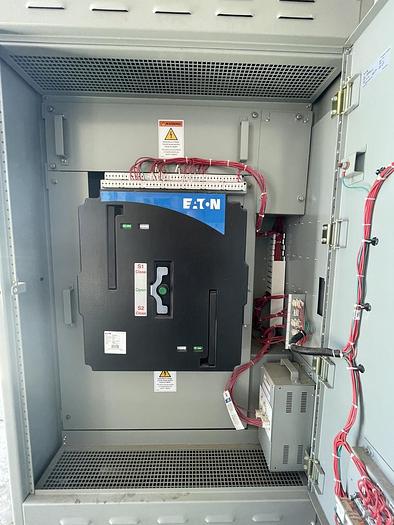

                1         NTCEF5 3 Poles 2000 Amps

                1         Enclosure - Type-1

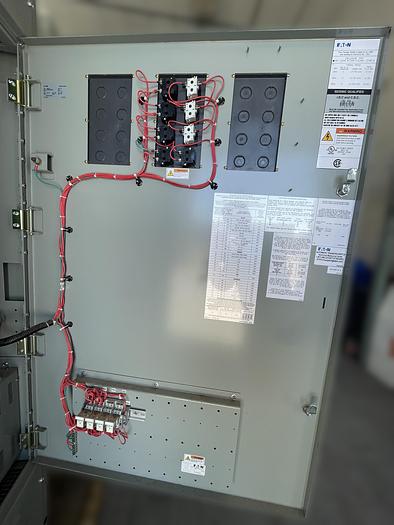

                1         12c. Indicating Light Normal Source Connected

                1         12d. Indicating Light Emergency Source Connected

                1         12g. Indicating Light Normal Source Present

                1         12h. Indicating Light Emergency Source Present

                1         14l. Normal (S1) Source Present (2 Form C)

                1         14m. Emergency (S2) Source Present (2 Form C)

                1         15v. Normal (S1) Position Indication 6NO 6NC

                1         15w. Emergency (S2) Position Indication 6NO 6NC

                1         22. Ground Bar

                1         42. IBC/CBC Seismic Qualified

                1         49c. Multi-Tap Transformer        600v, 480v, 240v, 208v

                1         59a. Silver Plated Bus
